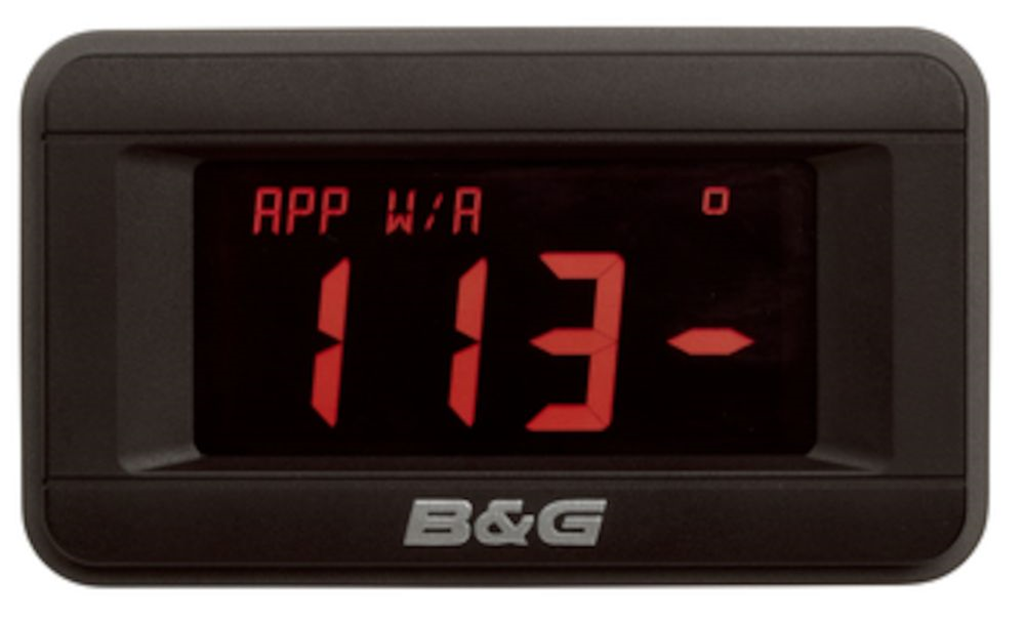

H3000 10/10 HV Display Pack

SKU: BGH320001

10/10HV Display Pack for H3000 and WTP3 systems.
$1,019

Specifications

Display
Backlight Color
Red, White
Approvals
Approvals Compliance
IEC/EN 60945
Electrical
Power Consumption max
1.1W
Power Consumption typical
0.6W
Recommended Fuse Rating
5A
Supply Voltage
12V DC (10-16V DC)
Environment
Humidity
Up to 95% RH
Operating Temperature Range
-10 to +55ºC (+14 to 131ºF)
Waterproofrating
IP67
Physical
Compass Safe
200mm (7.9")
Dimensions W x H x D
114 x 66 x 55mm (4.4 x 2.5 x 2.1")
Mounting Type
Flush
Weight
0.3 kg (0.6 lbs)
Other
Languages
English
Warranty Period
2 Years
