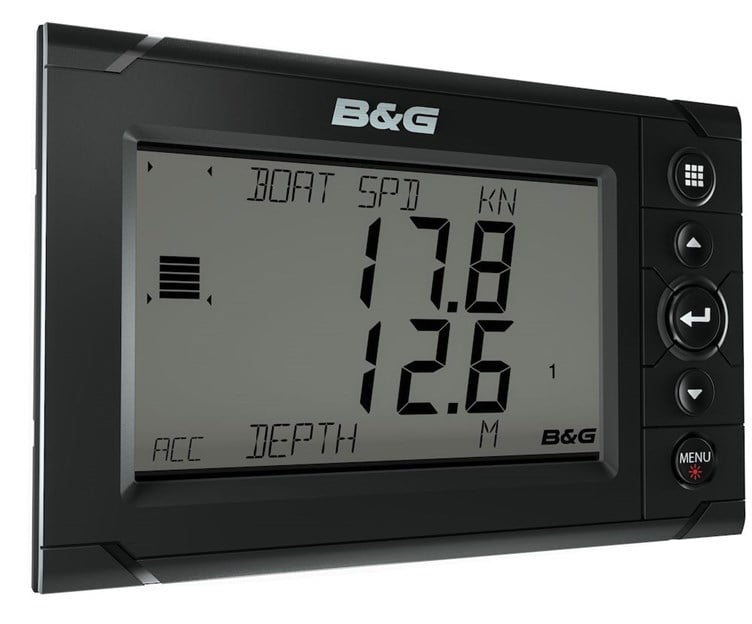

H5000 Race Display

SKU: 000-11543-001

The H5000 Race Display features a clear segmented display for viewing essential data at a glance, with update rates up to 10Hz.
£823.99

Product details

The bonded glass H5000 Race Display features large, clear custom display to deliver essential race data at a glance. A unique bar graph adjacent to the numbers provides an immediate visual indicator of target data and trends.

With huge viewing angles and excellent visibility, this 5-inch LCD screen is sunlight readable and the backlight can be dimmed to almost zero for night sailing.

  • Clear, highly visible display in all conditions
  • Transflective, Custom display
  • Optically bonded glass screen
  • Ultra-low power consumption
  • Tough design - built to last
  • HV display control

Key Features

  • Extremely High-Contrast Optically Bonded LCD
  • 5" sunlight viewable, segmented monochrome, wide-screen display
  • Straight-forward user interface
  • System status icons
  • Bargraph option for graphical view of selected data
  • Robust, lightweight ABS construction
  • HV, Race TImer and backlight control for H5000

IPX7 Waterproof

NMEA 2000

Instrument

What's in the box?

  • N2K-T-RD Network T-Connector

Specifications

Display
Backlight Color
Red, White
Connectivity
NMEA 2000 Connectivity
1 x NMEA2000 Micro-C port, 2 LEN
Approvals
Approvals Compliance
IEC/EN 60945
Electrical
Power Consumption max
1.0W
Power Consumption typical
0.6W
Recommended Fuse Rating
5A
Supply Voltage
12V DC (10-16V DC)
Environment
Operating Temperature Range
-10 to +55ºC (+14 to 131ºF)
Waterproofrating
IPX7
Physical
Compass Safe
300mm (1.0')
Dimensions W x H x D
172 x 114 x 40mm (6.8 x 4.5 x 1.6")
Mounting Type
Flush
Weight
0.45 kg (1 lbs)
Other
Interface
keypad
Languages
English, German, Spanish, French, Italian
Warranty Period
2 Years
