WS710 Wind Pack

SKU: 000-14384-001

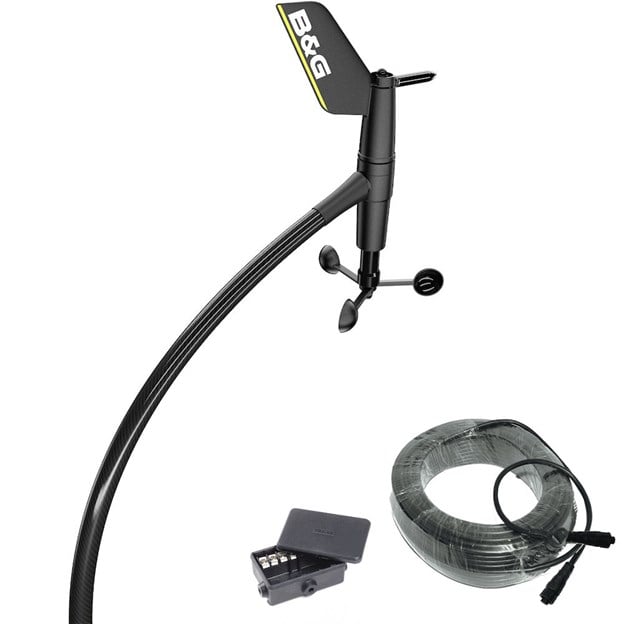

The WS710 Wind Pack offers superb aerodynamics and accuracy. A 0.8m high modulus carbon spar elevates the wind sensor into clear air, above any sail-plan disturbance at the masthead. Pack includes 35m mast cable and junction box to aid mast-base connection.

View Key Features

Spar Length

0.8m 1.1m 1.4m 1.8m

Pack Option

Sensor Only Wind Pack

Specification

Ocean Standard

£2,530

Find a dealer

The WS700 series is the ultimate wind sensor for performance sailing, providing the most accurate wind angle and speed data. The new one-piece vane design gives superb aerodynamics and stability, as a result of over 200,000 hours of combined design and wind tunnel testing.

The vertical spar minimises the effect of sail-plan disturbance on wind measurement ensuring the best performance with minimum calibration. This means reliable True Wind Direction to make precise race calls when needed and better steer-to-wind performance in all conditions when on autopilot.

Choose from 4 options of vertical high-modulus carbon spars from 0.8 to 1.8m** in standard or ocean specification.

WS700 series follows the same physical mounting as previous models (VHMU) providing an easy upgrade path.

**Spar sizes are indicative

Wide Compatibility

WS700 sensors are compatible with a variety of instrument systems.

System	WS700 compatible?	Notes
Triton	Yes (requires optional parts)	Compatible via WS310 interface option
Triton2	Yes (requires optional parts)	Compatible via WS310 interface option
H3000	No	Recommendation: use 213 or BGH03xxxx wind sensors
H5000	Yes	Compatible via NMEA 0183 to CPU or Expansion Module. Compatible via network with WS310 interface option
WTP3	Yes	Software 2.2.1 or later recommended (previous versions compatible but require analogue port spoofing)
NMEA 0183-systemer	Yes	Does not require interface. Outputs “MWV,R” sentence @ 10Hz, 38.4k
NMEA 2000® systems	Yes (requires optional parts)	Compatible via WS310 interface option. Display must have internal calibration facility. Certification pending
