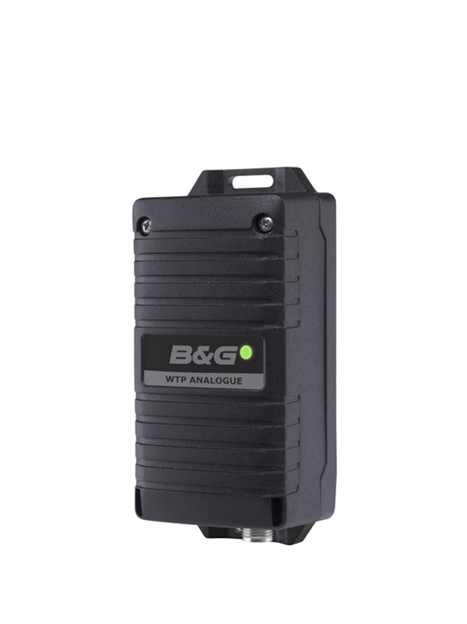

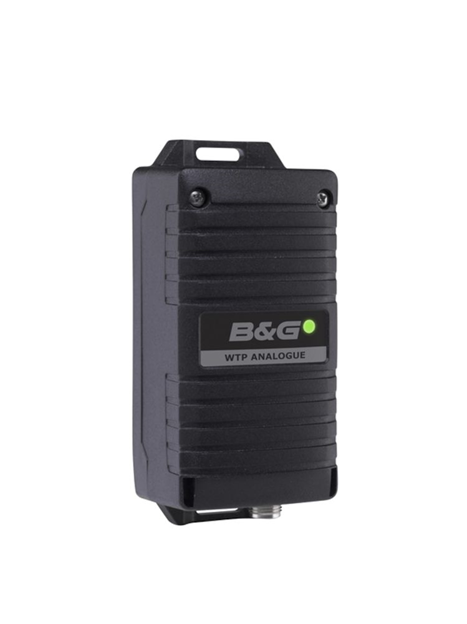

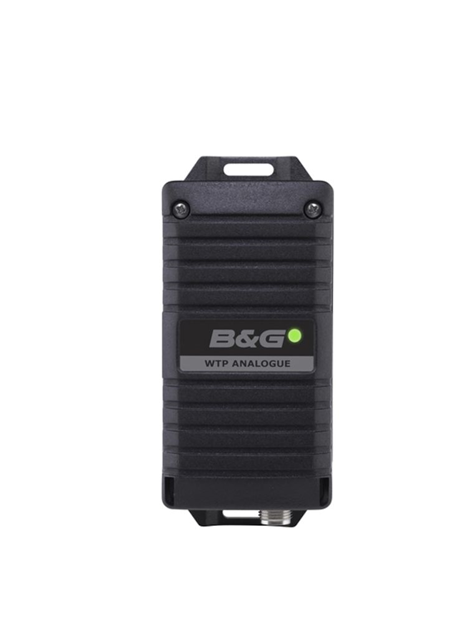

WTP3 Analogue Module

SKU: 000-10316-001

Product details

Provides analogue data acquisition, and includes a range of input and output options to support a wide variety of sensors. Works in harmony with the WTP3 CPU to provide the most accurate data available.

Key Features

  • 6 Analogue Inputs
  • 2 Pulse Inputs
  • CAN Network
  • Rugged
  • High speed data acquisition

Specifications

Connectivity
NMEA 2000 Connectivity
1 x NMEA2000 Micro-C port, 1 LEN
Approvals
Approvals Compliance
IEC/EN 60945
Electrical
Power Consumption typical
0.6W
Supply Voltage
12V DC (10-16V DC)
Environment
Operating Temperature Range
-10 to +55ºC (+14 to 131ºF)
Waterproofrating
IP66
Physical
Dimensions W x H x D
61 x 131 x 45mm (2.4 x 5.2 x 1.8")
Weight
0.17 kg (0.37 lbs)
Other
Warranty Period
2 Years
