NAC-3 VRF Core Pack

SKU: 000-13338-001

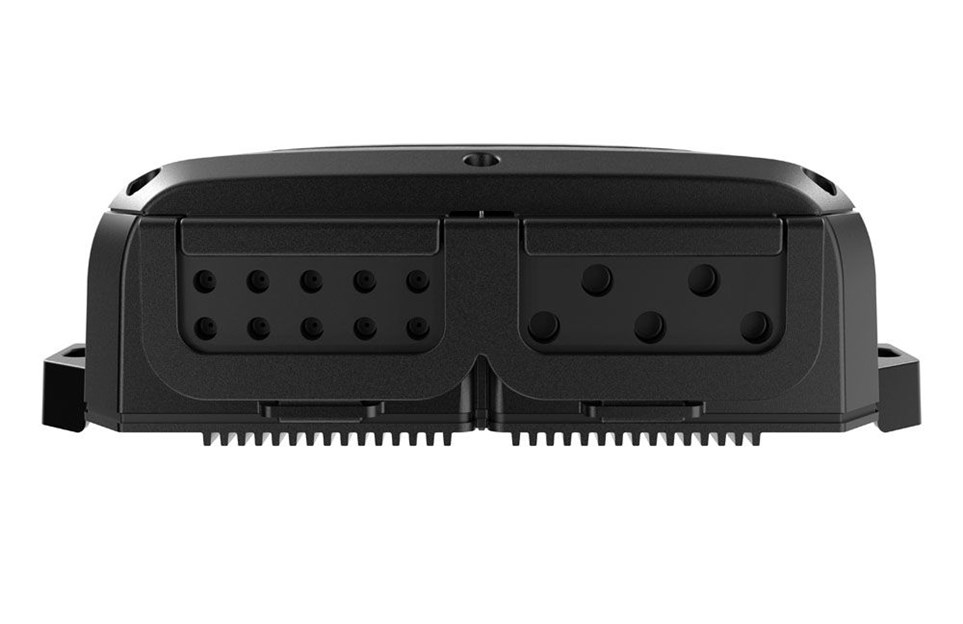

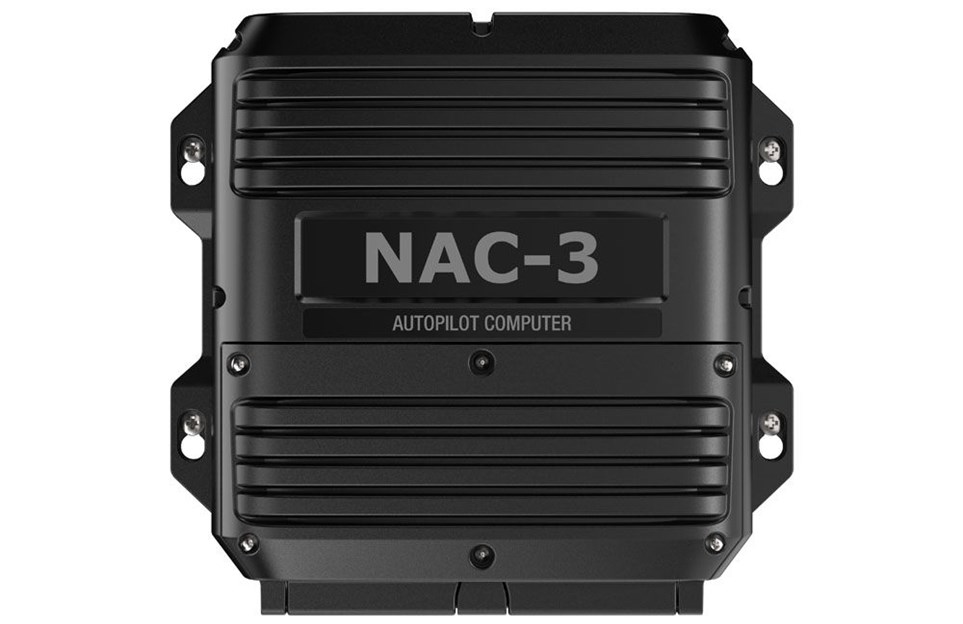

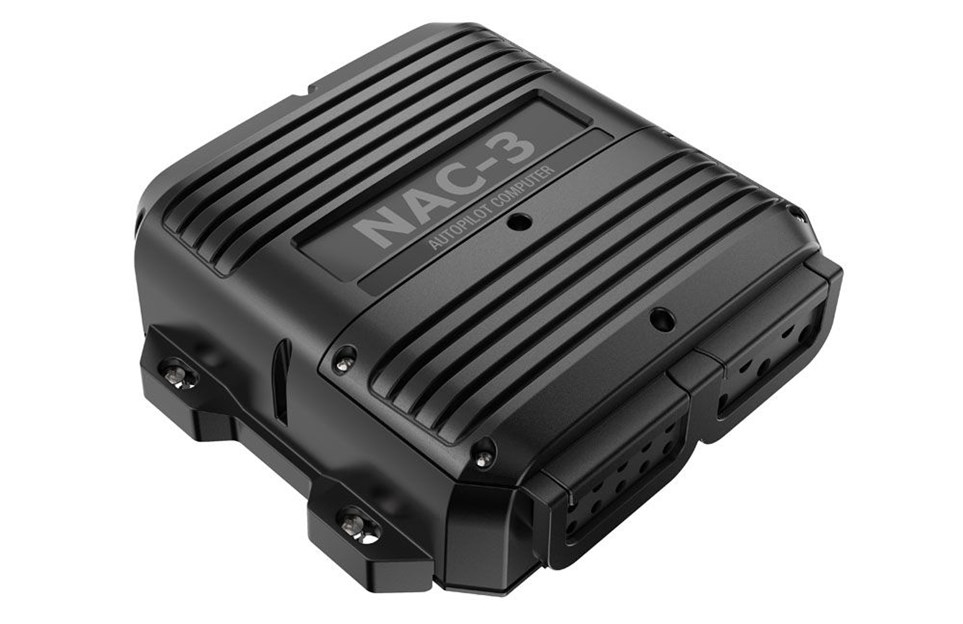

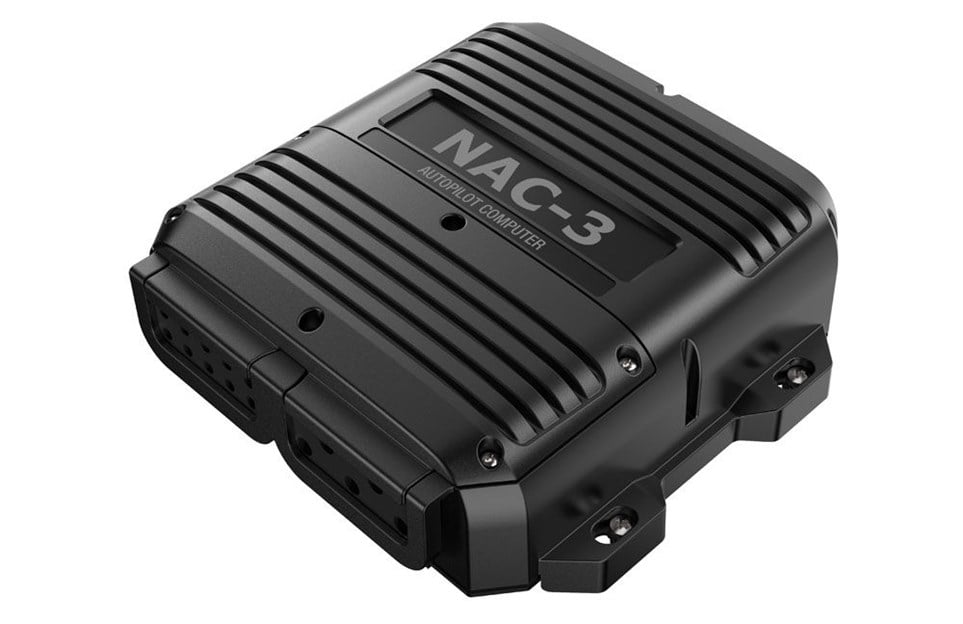

The NAC-3 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats ten metres (35 feet) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 amps continuous/50 amps peak).
$1,950.00

This product is not currently available to purchase online

Product details

NAC-3 Autopilot Core Pack: Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, NMEA2000 Backbone kit. Ideal for vessels above 10 metres/35 feet in length

NAC-3 Autopilot Computer The NAC-3 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats ten metres (35 feet) or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 amps continuous/50 amps peak).

  • B&G Reflex Sailing algorithms
  • Plug and Play installation
  • 12/24V input 8A continuous output, 12A peak
  • Solenoid output capable
  • 3A clutch output
  • Optional Auto/Standby Switch

Precision-9 Compass The Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems. Based on reliable solid-state sensor technology, this compact compass offers easy installation aboard any vessel. Heading, Rate Of Turn (ROT), roll, and pitch output over NMEA 2000® Heading and ROT calculated using sensor data from 9 axes of rotation and motion Accurate and reliable solid-state sensor technology Heading accuracy of ±2° after calibration Easily adjustable mounting bracket allows bulkhead or up-mast installation IPX7 waterproof. Best in class. Simple installation with a single NMEA 2000® connection RF25 Rudder Feedback Unit

In the box: NAC-3 Course Computer Precision-9 Compass NMEA 2000 Backbone kit Documentation

Minimum product requirements

Requires a hydraulic steering pump or mechanical drive unit, and a compatible Simrad autopilot controller or networked multifunction display.

Key features

  • Reliable autopilot performance based on Simrad Continuum steering technology

NMEA 2000

Autopilot

What's in the box?

  • NAC-3 Autopilot Computer
  • Precision-9 Compass
  • Micro-C Backbone Kit
