Zeus™ S 9 Chartplotter with C-MAP cartography

SKU: 000-15220-001

Zeus® S is our most intuitive chartplotter for sailing yet. It comes with new and unique Sailing Modes with preset dashboards and data for your situation, along with many enhanced sailing features for a simpler sailing experience. All of which is backed up by clear and accurate C-MAP® charting options for the safest and easiest navigation.
$1,499

Zeus® S

Intuitive and easy-to-use Chartplotter

Zeus® S is our most intuitive chartplotter for sailing yet. It comes with new and unique Sailing Modes with preset dashboards and data for your situation, along with many enhanced sailing features for a simpler sailing experience. All of which is backed up by clear and accurate C-MAP® charting options for the safest and easiest navigation.

Sailing Modes



Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more.





C-MAP® powered Safety Alerts guard against grounding and dangerous objects.

Sailing Modes



Improve your sailing with easy to interpret pointers from B&G®’s award-winning sailing features for cruising and racing, with updates to SailSteer™, Laylines, StartLine, Routes, Racing and many more.

C-MAP® powered Safety Alerts guard against grounding and dangerous objects.


Mapping

C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for clear and easy navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.

Mapping

C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with simple viewing options for clear and easy navigation. Tides and currents projections improve trip planning and route plotting, further supported by our fastest-ever autorouting. Plus, get quick, one-touch access to POIs, tides, channels, and more.

A

Integration



Zeus® S is designed to be the heart of your sailing system. With built-in Wi-Fi®, Ethernet, and NMEA 2000®, it’s easy to connect to Autopilots, Radar, Instruments and Sensors including wind, depth, speed, GPS and compass.













Connecting with the B&G App offers further control and navigation options, both on and off the boat.

Integration



Zeus® S is designed to be the heart of your sailing system. With built-in Wi-Fi®, Ethernet, and NMEA 2000®, it’s easy to connect to Autopilots, Radar, Instruments and Sensors including wind, depth, speed, GPS and compass.

Connecting with the B&G App offers further control and navigation options, both on and off the boat.


Intuitive

Zeus® S makes data easy to read, and even easier to digest. The interface is designed to feel familiar – with a new Setup Wizard to get you started, and helpful feature tips to guide you along the way. Get hassle-free software updates, on- and off-the-water trip planning, and the same clear, accurate chart displays across your Zeus S, App and Web.


Key Features

  • Sailing Modes for Cruising and Racing, providing exactly the data you need for your situation.
  • NEW C-MAP-powered Safety Alerts feature, to avoid shallow water and dangerous objects on a collision course
  • Includes B&G’s award-winning sailing features, as well as unique new updates to Laylines, Routes, SailSteer™ and StartLine
  • C-MAP® DISCOVER™ X and REVEAL™ X charts feature highly accurate data with intuitive viewing options for easy navigation
  • High definition SolarMAX™ IPS touch screen, viewable from all angles and in all conditions, even with polarised sunglasses
  • Full integration with HALO® Radars, Triton™2 Pilots, Triton™2 and Nemesis® instruments, sensors and more
  • Set-up Wizard to get you up and running quickly
  • B&G® App integration - access data and charting both on and off the water
  • Wireless connectivity, plus full Ethernet and NMEA 2000® networking capability
  • IP Video camera support

Specifications

Display
Backlight Color
White
Display Resolution
1280 x 800
Display Size
9 inches
Screen Brightness
1200 nits
Viewing Angles
85° (top, bottom, left, and right)

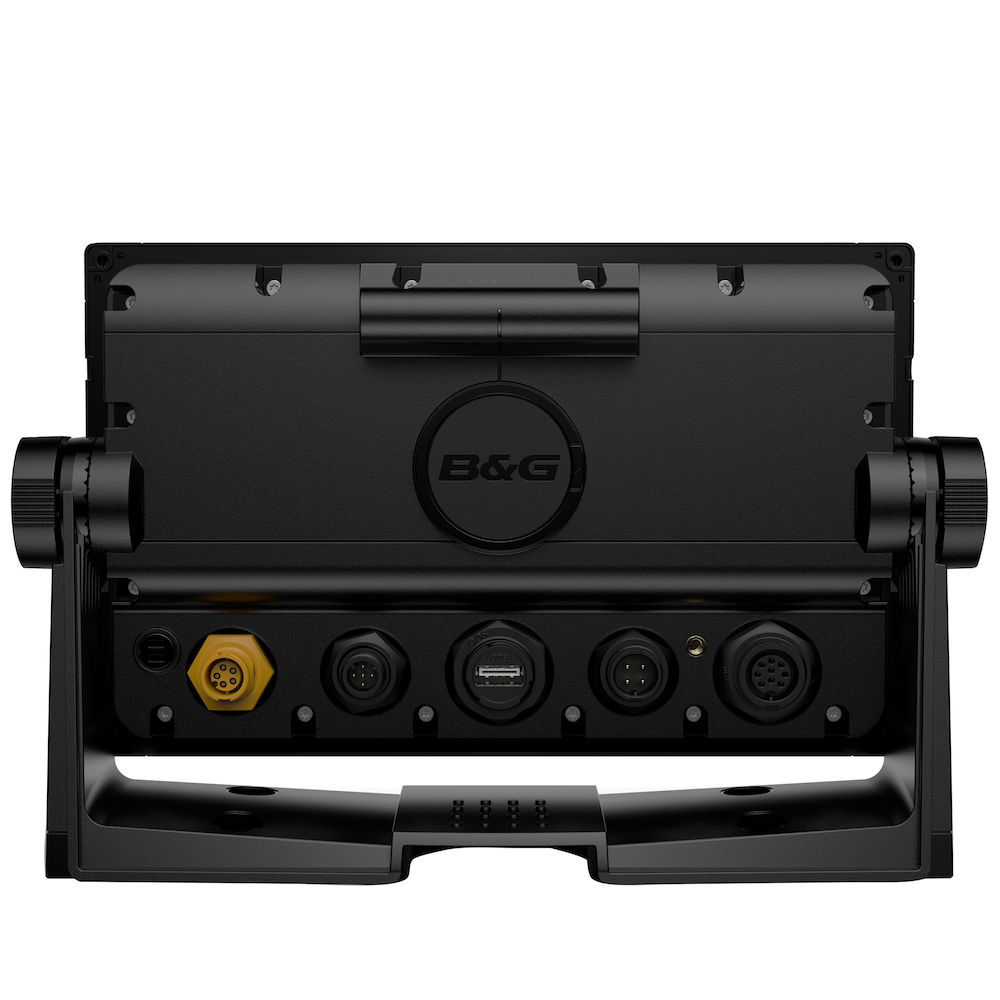

Connectivity
Ethernet Ports
6 port (5-pin yellow connector)
Connectivity Wi Fi
IEEE 802.11b/g/n
N2K PG Ns
Receive only59392 ISO Acknowledgement59904 ISO Request60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.65240 ISO Commanded Address60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info126998 Configuration Information127233 Man Overboard Notification (MOB)127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127252 Heave127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127500 Load Controller Connection State / Control127501 Binary Status Report127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129545 GNSS RAIM Output129549 DGNSS Corrections129551 GNSS Differential Correction Receiver Signal129793 AIS UTC and Date Report129794 AIS aids to Navigation129798 AIS SAR Aircraft Position Report129801 Cross Track Error129802 AIS Safety Related Broadcast Message129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130060 Label130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130316 Temperature, Extended Range130569 Entertainment - Current File and Status130570 Entertainment - Library Data File130571 Entertainment - Library Data Group130572 Entertainment - Library Data Search130573 Entertainment - Supported Source Data130574 Entertainment - Supported Zone Data130576 Small Craft Status130577 Direction Data130578 Vessel Speed Components130579 Entertainment - System Configuration Status130580 Entertainment - System Configuration Status130581 Entertainment - Zone Configuration Status130582 Entertainment - Zone Volume Status130583 Entertainment - Available Audio EQ Presets130584 Entertainment - Bluetooth Devices130585 Entertainment - Bluetooth Source StatusTransmit60160 ISO Transport Protocol, Data Transfer60416 ISO Transport Protocol, Connection M.126208 ISO Command Group Function126992 System Time126993 Heartbeat126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation127502 Switch Bank Control128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129285 Navigation - Route/WP Information129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data130578 Vessel Speed Components
NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
PC Connectivity
No
SD Card Storage
6 MicroSD slot
Video
IP Camera support
Electrical
Power Consumption max
29.7 W
Recommended Fuse Rating
3A
Supply Voltage
12 V DC (10 - 17 V DC)
Environment
Humidity
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)
Operating Temperature Range
-15°C to 55°C (5°F to 131°F)
Shock Vibration
100,000 cycles of 20 G
Storage Temperature Range
-20°C to 60°C (-4°F to 140°F)
Waterproofrating
IPx6 and IPx7
GPS
Correction
10 Hz high speed update (internal)WASS, MSAS, EGNOS, GLONASS
GPS Receiver Channels
32 Channels
Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)
Update rate
10Hz
MFD
AIS
Receive AIS data over NMEA 2000
GPS
Internal, 10Hz, WASS, MSAS, EGNOS
Sonar Compatibility
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.
Physical
Compass Safe
50 cm (1.7 ft)
Dimensions W x H x D
239 x 149 x 73mm (9.4 x 5.9 x 2.9")
Mounting Type
Bracket (supplied), panel mount or flush mount
Weight
2.2 kg (4.9 lbs)
Other
Interface
Multi-touch screen
Languages
English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Italian, Dutch, Norwegian, Portuguese (Brazil), Portuguese (Portugal) Swedish
Warranty Period
2 Years
