Zeus³ 16 chartplotter with C-MAP cartography

SKU: 000-13244-001

The Zeus³ 16 is a complete chartplotter navigation system for blue water cruisers and regatta racers. This ultra-bright, wide-angle display combines an all-weather 16-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.
$5,499.00
Find a dealer

Product details

The Zeus³ 16 is a complete chartplotter navigation system for blue water cruisers and regatta racers. This high-performance multifunction display features a 16-inch widescreen display, incorporating SolarMAX™ HD technology for brilliant daytime visibility and ultra-wide viewing angles. To ensure reliable control in all conditions and situations, Zeus³ incorporates an all-weather touchscreen that works even while wet. It combines this with an integrated rotary dial and keypad capable of controlling all display functions. Both sets of controls can be used simultaneously, or Zeus³ can be switched to non-touch mode for dependable operation under the most extreme conditions.

A high-performance processor enables responsive operation and quick chart redraw while moving, panning or zooming. Zeus³ is powered by B&G software designed specifically for sailors, and packed with a wide array of sail-specific functionality. See all key sailing data on a single screen with SailSteer, view laylines and tacking angles overlaid on charts, and plan more accurately with Sailing Time arrival estimates that factor in the realities of travel by wind. RacePanel delivers a range race-proven functionality including integration with B&G H5000 tactical systems for additional analytical and predictive capabilities.

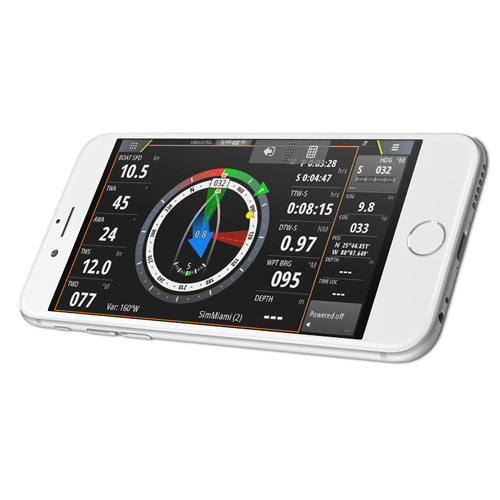

Built-in Wi-Fi lets you access charts, weather information, software updates and online support directly from your display via any Wi-Fi internet hotspot. GoFree® Wi-Fi also lets you mirror your Zeus³ screen on a compatible smartphone, and control your Zeus³ display from a compatible tablet, for an extra display that you can use anywhere on board.

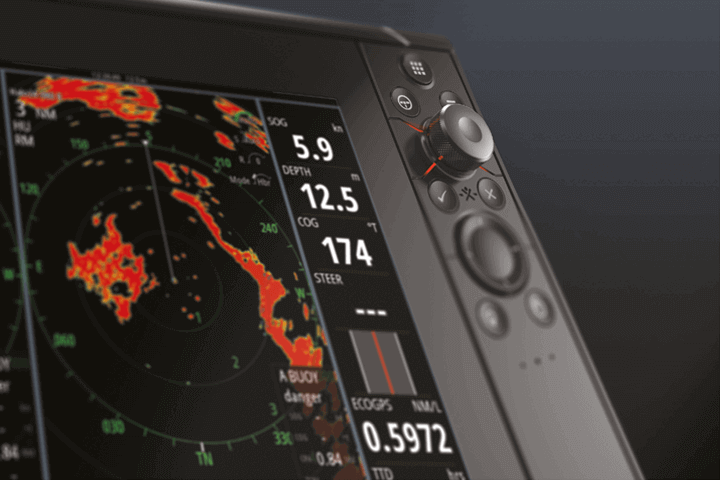

See what lies ahead beneath the water with built-in support for ForwardScan™ sonar, and above the water with plug-and-play support for Broadband Radar™ and AIS solutions. Enhance your situational awareness in crowded harbours and during races and regattas with tools like MARPA target tracking and AIS overlay. Complete autopilot integration means short-handed and single-handed sailors can take immediate control of their B&G autopilot system from any B&G Zeus³ display on board.

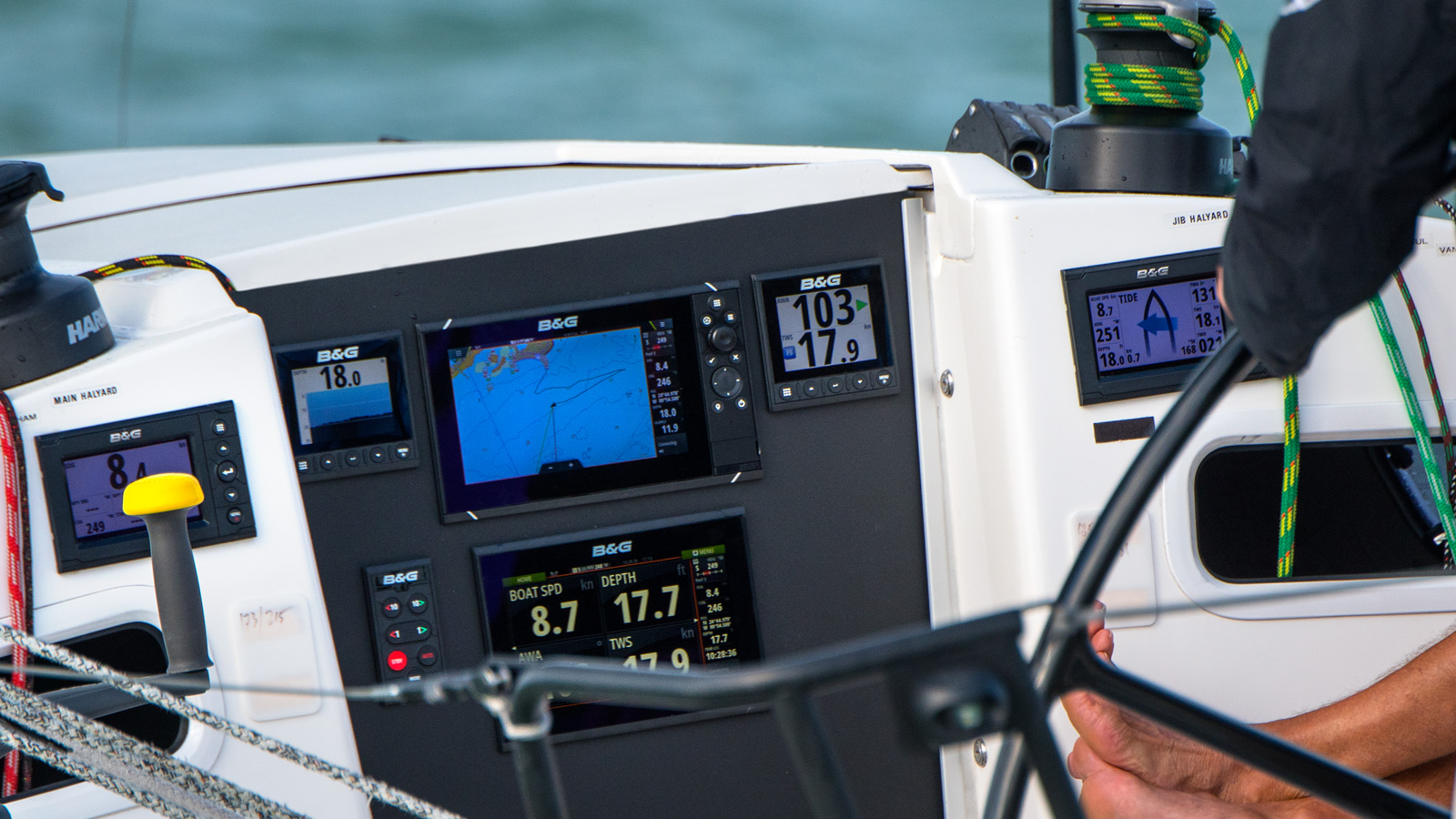

Zeus³ also connects seamlessly to a wide range of sensors, instruments, displays, expansion modules, and accessories; allowing you to create a fully-integrated electronics solution to provide greater safety, performance, and enjoyment on the water.

Preloaded C- MAP® US Enhanced charts provide detailed mapping with 1-foot contours for thousands of lakes and coastal regions.

Key Features

  • A super-bright 16″ SolarMAX™ HD display with ultra-wide viewing angles
  • Dedicated sailing features such as SailSteer, Laylines and RacePanel
  • High-performance processor for responsive operation and quick chart redraw
  • All-weather touchscreen plus full rotary and keypad controls
  • Wi-Fi enabled for easy access to charts, weather, updates, support, and screen mirroring
  • Built-in ForwardScan™ sonar support for safer passage through shallow waters

10 Hz GPS

IPX7 Waterproof

NMEA 2000

Wireless Built-In

2 Year Warranty

Sailing Features

What's in the box?

  • Zeus³ 16 Sun Cover

Specifications

Display Resolution
1920 x 1080
Waterproofrating
IPX6 and 7
NMEA 2000 Connectivity
1 x NMEA 2000 Micro-C port, 1 LEN
Supply Voltage
10 - 31.2 V DC
Update rate
10 Hz
Operating Temperature Range
-15°C to +55°C (5° F to 131° F)
Internal Storage
16 GB
Display Size
16 inches
SD Card Storage
2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Ethernet Ports
2 x 5 pin yellow connector x 1 Mbit
Video
2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). HDMI output
Warranty Period
2 Years
Storage Temperature Range
-20°C to +60°C (4°F to 140°F)
GPS Receiver Channels
34 Channels
Weight
4.65 kg (10.25lbs.)
Dimensions H x W x D
437 x 256 x 98 mm (117.19 x 10.08 x 3.82")with bracket: 462 x 264 x 122 (18.19 x 10.39 x 4.80")
Power Consumption max
45 W
Recommended Fuse Rating
5A
Waypoints, Routes, Tracks
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Viewing Angles
80° top/bottom, 80° left/right
Steering Modes
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail)
Digital Switching
BEP C-Zone, Naviop
Mounting Type
Bracket (Supplied) or panel mount
Radar compatibility
Broadband Radar
Approvals Compliance
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.2
Catography included
C-MAP
Time to First Fix
Cold start 50 sec, Satellite Reacquisition 5 sec
Autopilot
Full auto pilot control and commissioning
Interface
Full touch screen (multi-touch ) and full keypad control, ZC2 remote controllers, USB Mouse
Position Accuracy
Horizontal Accuracy 3 m (9.8 ft)
NMEA 0183 Sentences supported
Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. (Note AIS sentences are not bridged to or from NMEA 2000)Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM
Charts supported
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
GPS
Internal
Item Connectivity WiFi
Internal
Bluetooth
Internal
PC Connectivity
No
AIS
Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
N2K PGNs
Receive only59392 ISO Acknowledgement, 59904 ISO Request, 60928 ISO Address Claim, 65285 Temperature with Instance, 65323 Data User Group Request, 65325 Reprogram Status, 65341 Autopilot Mode, 65480 Autopilot Mode, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127503 AC input status, 127504 AC Output Status, 127505 Fluid Level, 127506 DC Detailed Status, 127507 Charger Status, 127508 Battery Status, 127509 Inverter Status, 129033 Time & Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Addressed Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 129809 AIS Class B “CS” Static Data Report, Part A, 129810 AIS Class B “CS” Static Data Report, Part B, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 130842 SimNet DSC Message, 130851 Event Reply, 130817 Product Info, 130820 Reprogram Status, 130832 Fuel Used - High Resolution, 130834 Engine and Tank Configuration, 130838 Fluid Level Warning, 130843 Sonar Status, Frequency and DSP Voltage,Transmit and Receive:61184 Parameter Request/Command, 65289 Trim Tab Insect Configuration, 65291 Backlight Control, 65292 Clear Fluid Level Warnings, 65293 LGC-2000 Configuration, 126208 ISO Command Group Function, 126992 System Time, 126996 Product Info, 127237 Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation, 128259 Speed, Water referenced, 128267 Water Depth, 128275 DistanceLog, 129025 Position, Rapid Update, 129026 COG & SOG, Rapid Update, 129029 GNSS Position Data, 129283 Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats in View, 130074 Route and WP Service - WP List - WP Name & Position, 130306 Wind Data, 130310 Environmental Parameters, 130311 Environmental Parameters, 130312 Temperature, 130577 Direction Data, 130840 Data User Group Configuration, 130845 Parameter Handle, 130850 Event Command, 130831 Suzuki Engine and Storage Device Config, 130835 SetEngineAndTankConfiguration, 130839 Pressure Insect ConfigurationTransmit only65287 Configure Temperature INSOcts, 65290 Paddle Wheel Speed Configuration, 129285 Route/Waypoint Data, 130818 Reprogram Data, 130819 Request Reprogram, 130828 Set Serial Number, 130836 Fluid Level Insect Configuration, 130837 Fuel Flow Turbine Configuration
Weather
SiriusXM via WM-3 (USA only), GRIB
Languages
Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, SwedishOther languages supported by Unlock:Japanese, Korean, Thai, Chinese, Bulgarian, Hebrew, Croatian, Hungarian, Lithuanian, Latvian, Polish, Slovak, Turkish, Russian, Ukrainian, Arabic,Farsi
Sonar Compatibility
Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
Manouevres Turn Patterns
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking
Multimedia
via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only)
Correction
WASS, MSAS, EGNOS, GLONASS
Backlight Color
White
